The Definitive Smart Thermostat Wiring Guide: Color Codes, C-Wire Solutions, and 24VAC Circuit Diagnostics

1. The 24VAC HVAC Control Loop: How Low-Voltage Heating & Cooling Works

To safely wire, troubleshoot, and commission a smart thermostat, one must understand the electrical physics of the residential climate control loop. Unlike mains-powered appliances operating on 120VAC or 240VAC line voltage, modern North American heating, ventilation, and air conditioning (HVAC) control circuits operate strictly on Class 2 low-voltage alternating current (24VAC nominal), governed by National Electrical Code (NEC) Article 725.

This low-voltage infrastructure provides two critical benefits: safety and convenience. Because 24VAC presents virtually zero shock hazard under ordinary circumstances, multi-conductor solid copper cables (typically 18 AWG) can be routed inside drywall cavities, floor joists, and stud bays without the heavy metal conduit required for 120VAC wiring.

The Step-Down Transformer: The Heart of the System

The control loop originates at a step-down transformer mounted inside the furnace cabinet, boiler casing, or attic air handler. The primary winding accepts 120VAC line power from your household breaker panel. The secondary winding outputs nominal 24VAC. In open-circuit conditions (when the system is idle and no relays are energized), a healthy transformer measures between 26.0VAC and 28.5VAC across its secondary output terminals.

Residential HVAC transformers are typically rated for 40 Volt-Amps (40VA). This rating establishes the transformer's maximum power budget:

Under normal operation, this 1.67-ampere current envelope is divided among multiple inductive loads:

• Compressor Contactor Coil (Y terminal): ~0.4A to 0.6A holding current (inrush up to 1.2A).
• Furnace Gas Valve or Ignition Module (W terminal): ~0.3A to 0.5A continuous current.
• Indoor Blower Fan Relay (G terminal): ~0.1A to 0.25A current.
• Smart Thermostat Wi-Fi & Processor Logic: ~0.15A to 0.35A continuous power.

If aging contactor coils pull excessive current or if multiple accessories (humidifiers, electronic air cleaners, smart thermostats) overload an undersized 20VA or 30VA vintage transformer, voltage drops precipitously, inducing contactor chattering, Wi-Fi disconnections, and system lockouts.

The 3-Amp Automotive Blade Fuse: Why It Blows

Virtually all modern integrated control boards (ICBs) feature an onboard 3-amp or 5-amp purple or amber automotive blade fuse (type ATC or ATO). This fuse guards the fragile secondary windings of the transformer and the printed circuit board traces against overcurrent catastrophes.

From Passive Bimetallic Strips to IoT Microcomputers

The fundamental tension during smart thermostat upgrades stems from an architectural generation gap. The iconic 1953 Honeywell Round T87 thermostat was a 100% passive, electromechanical device. It required exactly 0.00 Watts of external electrical power. Inside the round dial, a coiled bimetallic strip expanded or contracted with temperature shifts, tilting a sealed glass bulb containing a bead of liquid mercury across two electrical contacts. It was purely an isolated mechanical switch.

In stark contrast, modern smart thermostats are networked embedded computers. They incorporate ARM Cortex microcontrollers, dual-band 2.4 GHz and 5 GHz 802.11 b/g/n/ac Wi-Fi radios, Bluetooth Low Energy transceivers, PIR motion sensors, ambient light photodiodes, and high-resolution color touchscreens. These high-performance components require continuous, steady direct-current (DC) power, rectified from the home's 24VAC supply. Without a dedicated return path—the elusive Common Wire (C-wire)—modern smart thermostats are forced into unstable electrical workarounds.

2. Standard Thermostat Wire Color Codes vs. Terminal Designations

Ask any seasoned HVAC field technician about thermostat wiring, and they will share the undisputed Golden Rule of climate control: Never wire by color. Always wire by terminal letter.

While the heating and cooling industry established standardized color conventions across multi-conductor solid copper cable (governed by NEMA standards and building trade practices), wire color is an installer convention, not a legally binding electrical code. Over the lifetime of an American home, heating contractors, general remodelers, and previous DIY owners may have spliced wires in an attic junction box, run out of the proper colored spool, or repurposed an odd conductor.

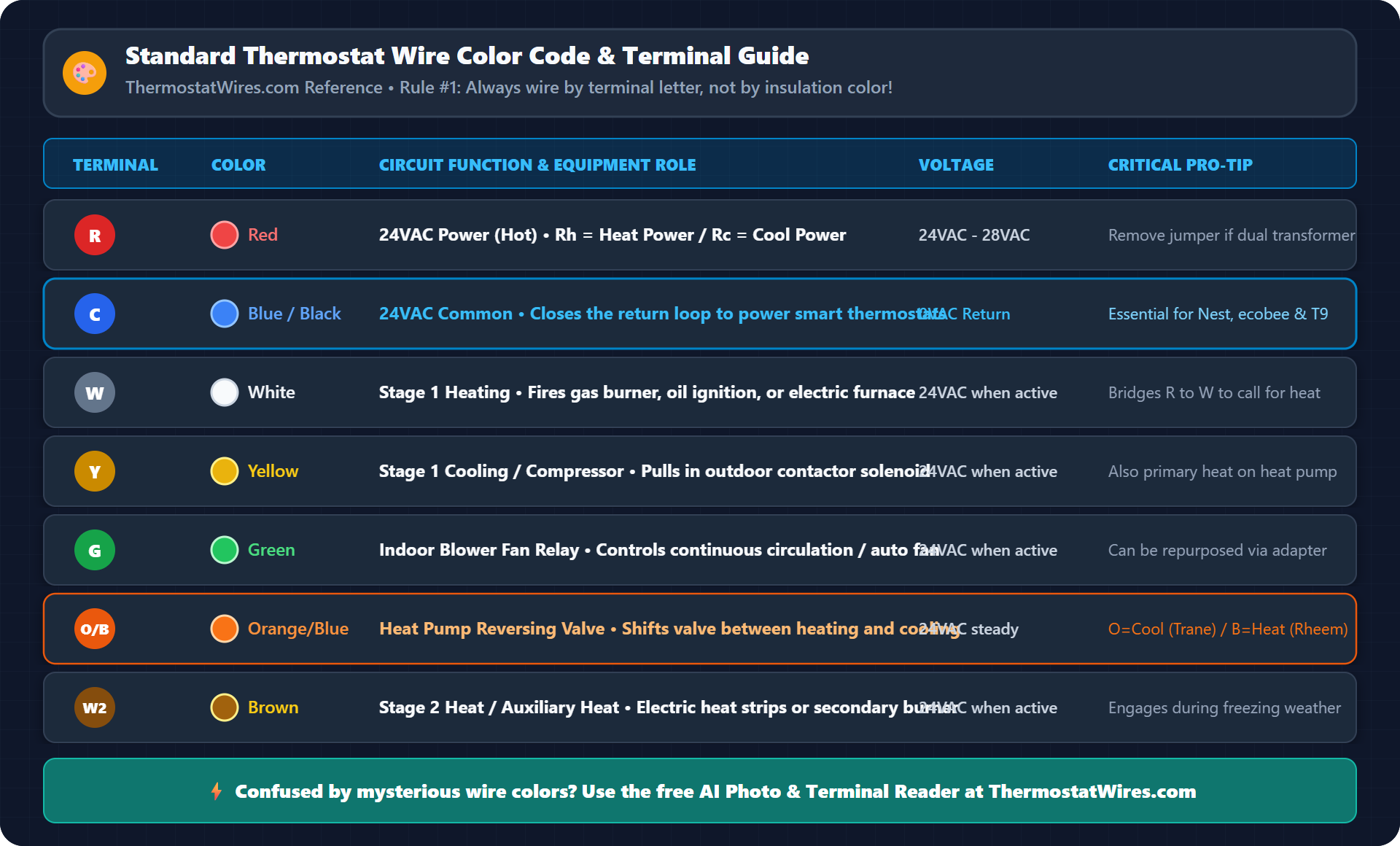

The Master HVAC Terminal Pinout Matrix

The following technical table provides the definitive mapping of standard North American low-voltage terminal designations, standard conductor colors, electrical functions, and critical field cautions:

Solid Copper Wire Gauge Standards: Why 18 AWG Matters

The residential standard for HVAC control wiring is 18 AWG solid copper multi-conductor cable, designated by conductor count:

• 18/4 Cable (4 conductors): Contains Red, White, Yellow, Green. Extremely common in homes built before 2005. Lacks a dedicated C wire (see 4-wire setup).
• 18/5 Cable (5 conductors): Contains Red, White, Yellow, Green, Blue. The modern standard for single-stage heating and cooling with a dedicated C wire (see 5-wire setup).
• 18/8 Cable (8 conductors): Contains Red, White, Yellow, Green, Blue, Orange, Brown, Black. Standard for multi-stage heat pumps with auxiliary and emergency heat stages.

Occasionally, DIYers open older homes and discover 20 AWG or 22 AWG stranded cable, or worse, repurposed 24 AWG telephone/cat3 twisted pair wiring. Thin conductors exhibit high internal resistance, causing voltage drops across long runs. Furthermore, 22 AWG and 24 AWG solid conductors are prone to snapping inside the spring-loaded push terminals of modern smart thermostats. If your home has sub-standard gauge wiring, pulling a fresh run of 18/5 or 18/8 cable is the highest-reliability investment you can make.

3. The Common Wire (C-Wire) Decoded: Parasitic Power Stealing vs. Closed Loops

No topic in residential home automation generates more confusion, frustration, and service calls than the dreaded C-wire (Common Wire). To understand why a smart thermostat demands a C-wire while your old mechanical thermostat functioned flawlessly for twenty years without one, we must analyze the electrical physics of closed-loop power delivery.

The Physics of Electrical Current: Hot vs. Return

In any alternating current circuit, electricity cannot flow unless there is a complete, continuous loop. Think of the Red wire (R) as the pressurized water pipe entering your home. It delivers 24VAC electrical energy from the furnace transformer. The other control wires—W (heat), Y (cool), and G (fan)—are return lines that route power back to the transformer only when their respective relays need to be energized.

When an old thermostat decided your living room was too cold, it simply snapped a mechanical switch closed, connecting R to W. Power surged through the furnace gas valve coil, operated the heating mechanism, and returned to the transformer's ground bus inside the furnace cabinet. When the room reached 70°F, the switch popped open, the current stopped, and the furnace turned off.

The old thermostat itself required zero power to operate. But your new smart thermostat needs steady electricity to keep its Wi-Fi radio connected to the internet, illuminate its LCD screen, and poll ambient temperature sensors 24 hours a day, 365 days a year. It cannot simply close R to W to power itself—because doing so would turn your furnace on continuously!

This is where the Common Wire (C) enters. The C-wire connects directly to the neutral/common terminal of the furnace transformer secondary winding. By connecting R and C to the smart thermostat, we establish a dedicated, permanent 24VAC power circuit that continuously powers the thermostat’s internal microelectronics without energizing any heating or cooling relays.

What is "Power Stealing" and Why Does It Cause HVAC Failures?

When early smart thermostats entered the market, millions of older homes only had 4-conductor wiring (R, W, Y, G), lacking a C wire. To capture this vast retrofit market, manufacturers engineered a technique called parasitic power stealing (or power harvesting).

In power stealing mode, the smart thermostat attempts to trickle a minuscule current (typically 10 to 20 milliamperes) through the heating (W) or cooling (Y) relay coil back to the transformer ground while the equipment is turned off. The engineering theory was that 20mA is low enough that it will not pull in the heavy mechanical spring of the furnace gas valve or compressor contactor.

In real-world homes, however, power stealing frequently causes severe operational failures:

1. Contactor Chattering and Buzzing: Modern outdoor air conditioner contactor solenoids are far more sensitive than vintage relays. The trickle current pulsating through the Y line causes the contactor arm to vibrate or "chatter" at 60 Hz, creating an audible buzzing sound and accelerating mechanical contact pitting.
2. Solid-State Control Board Lockouts: Modern high-efficiency furnaces utilize electronic microcontrollers on their integrated control boards rather than simple mechanical relays. When the furnace computer senses unintended current leaking down the W line during standby, it interprets this as a sensor fault or false call, flashing diagnostic error codes or locking the system out entirely.
3. Cold-Weather Battery Drain & Wi-Fi Disconnects: Here lies the catastrophic thermodynamic flaw of power stealing: a smart thermostat cannot steal power while heating or cooling is running! When the thermostat closes the internal relay between R and W to fire the furnace, the electrical potential difference across the switch drops to 0 Volts. The thermostat must switch to its internal rechargeable lithium-ion battery. During a harsh winter blizzard when the furnace runs continuously for 60 to 90 minutes, the battery drains, the Wi-Fi radio shuts down to conserve energy, and the thermostat resets mid-cycle, leaving the home unheated!

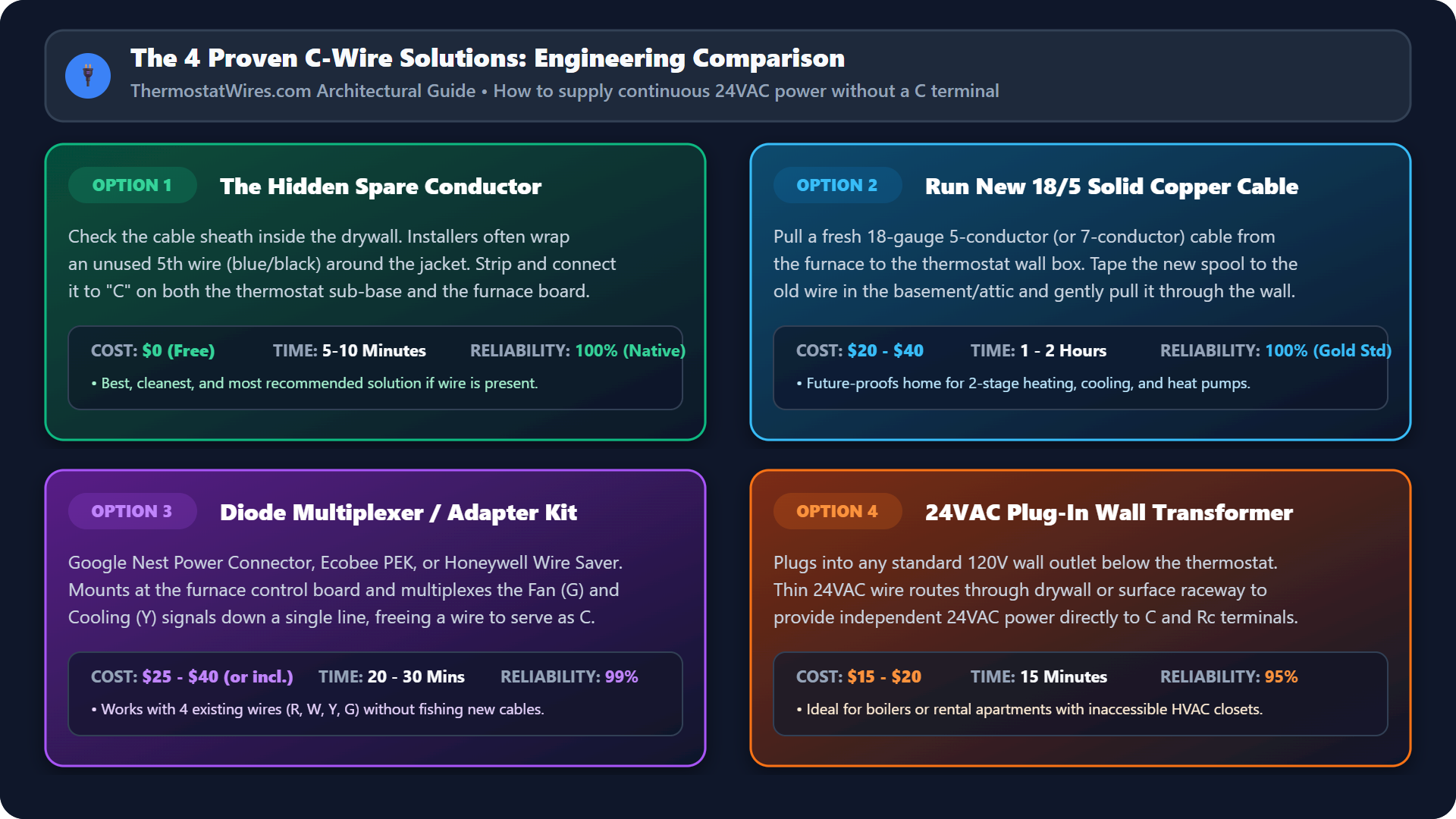

The 4 Proven C-Wire Solutions: Ranked by Reliability

If your existing wall plate only has four wires (R, W, Y, G) or two wires (R, W), you have four legitimate options to resolve the power challenge safely:

Option 1: The Hidden Spare Conductor (Best & Free)

Before buying any adapters, carefully turn off furnace power, unscrew the thermostat sub-base, and gently pull 3 to 4 inches of the cable sheath out from the wall. Heating installers frequently ran 18/5 cable but clipped or wrapped the unused 5th blue or black conductor around the outer brown sheath. If you find an unused wire, strip 3/8" of copper, connect it to the C terminal on your new thermostat, head down to your furnace control board, find the matching loose wire in the furnace cabinet, and screw it into the furnace C terminal. You now have a 100% native, factory-grade C wire for $0!

Option 2: Run New 18/5 or 18/8 Solid Copper Cable (The Gold Standard)

If your thermostat wall is located directly above an unfinished basement, crawlspace, or below an accessible attic, pulling a brand-new run of 18/5 or 18/8 solid copper thermostat wire provides lifetime reliability. Attach the new cable to the old wire in the basement, tape the splice securely with electrical tape into a tapered, snag-free cone, and pull it up through the floor plate into the wall cavity. This future-proofs your home for two-stage cooling, heat pumps, and humidifiers.

Option 3: Diode Multiplexing C-Wire Power Adapters (The DIY Favorite)

If fishing a new cable through finished walls is impossible, use a manufacturer-certified C-wire adapter kit:

• ecobee Power Extender Kit (PEK): Included free in the box with every ecobee thermostat. Mounts inside the furnace cabinet. It multiplexes the Fan (G) and Cooling (Y) signals down a single conductor using high-frequency diode switching, freeing the green wire to serve as a pure 24VAC C wire.
• Google Nest Power Connector: Google’s official C-wire solution for Nest Learning and Nest Thermostats. Installs at the furnace control board in 15 minutes without running new wires.
• Honeywell Wire Saver / Fast-Stat: Repurposes the Y conductor into the "K" terminal.

Option 4: 24VAC Plug-In Wall Transformer Adapter

For radiant floor heating, hydronic boilers, or historic brownstones where furnace access is restricted, an external 24VAC plug-in wall adapter solves the dilemma. The adapter plugs into a standard 120V outlet near the floor. Its two low-voltage leads route to the thermostat: one wire connects to C, and the other connects to Rc (with the boiler heating wires connected to Rh and W). This supplies isolated power to the smart electronics while keeping the boiler heating circuit 100% electrically separated.

4. Decoding Complex Terminals: Heat Pumps, Dual Transformers, and Wire Savers

Standard single-stage furnace setups with R, C, W, Y, and G are straightforward. The true diagnostic challenges arise when dealing with heat pumps, multi-stage systems, dual transformers, and manufacturer-specific terminal letters.

Heat Pump Reversing Valves: The O vs. B Polarity Dilemma

A heat pump is essentially an air conditioner that can run in reverse. Inside the outdoor condensing unit sits a heavy brass cylinder called the 4-way reversing valve, operated by an electrical solenoid. By shifting a sliding spool inside this valve, the direction of refrigerant flow reverses: in summer, heat is extracted from indoor air and expelled outside; in winter, heat is extracted from outdoor ambient air and pumped indoors.

The solenoid is controlled via the O/B terminal on your thermostat. However, the HVAC industry is split on how this valve is energized:

• The "O" Orientation (Energized in Cooling): Over 85% of North American heat pump manufacturers—including Carrier, Bryant, Payne, Trane, American Standard, Lennox, Goodman, Amana, and York—engineer their reversing valves to rest in heating mode when unpowered. When cooling is called, the thermostat energizes the "O" terminal with 24VAC, shifting the valve into cooling.
• The "B" Orientation (Energized in Heating): Rheem, Ruud, Paloma, and certain Bosch heat pumps engineer their reversing valves in reverse: the valve rests in cooling mode when unpowered and energizes the "B" terminal with 24VAC only when heating is called. For comprehensive details, read our dedicated heat pump wiring masterclass.

Auxiliary Heat (AUX / W2) vs. Emergency Heat (E)

Heat pumps lose thermal efficiency as outdoor temperatures plummet. Below approximately 30°F (-1°C)—known as the thermal balance point—the heat pump cannot harvest enough ambient heat to satisfy the thermostat setpoint. Systems therefore utilize supplemental heating:

• Auxiliary Heat (AUX): Electric resistance heating elements (typically 5kW to 15kW strip coils) mounted inside the indoor air handler. The smart thermostat automatically stages AUX heat to supplement the running compressor when the room temperature falls more than 2°F below the target setpoint.
• Emergency Heat (E): A manual override feature. If the outdoor heat pump compressor suffers a mechanical bearing lockup, a catastrophic refrigerant leak, or is encased in a thick block of ice after a freezing rain storm, the user selects "Emergency Heat" in the thermostat menu. This completely disables the outdoor compressor and runs 100% on electric resistance strips or the secondary furnace backup.

Dual-Transformer Systems (Rh vs. Rc)

In homes where heating and cooling were installed decades apart—such as a 1920s hydronic radiator boiler in the basement and an added attic air handler for central air conditioning—the thermostat must communicate with two completely separate 24VAC transformers:

• Rh (Red Heat): Carries 24VAC power from the boiler heating transformer.
• Rc (Red Cool): Carries 24VAC power from the air conditioning air handler transformer.

On single-transformer systems, Rh and Rc are tied together by a small metal jumper wire (or an internal mechanical toggle switch). On true dual-transformer systems, YOU MUST PHYSICALLY REMOVE THIS JUMPER. Leaving Rh and Rc shorted together on two separate transformers can bridge two out-of-phase power supplies, creating massive circulating currents that incinerate one or both transformers within seconds! See our Rh and Rc dual transformer guide for step-by-step isolation wiring.

5. Step-by-Step Diagnostic Workflow: Installing Like a Master HVAC Technician

Installing a smart thermostat is well within the capabilities of a careful DIY homeowner. By following the systematic, five-phase procedure practiced by licensed HVAC contractors, you eliminate guesswork, protect sensitive control boards, and guarantee a trouble-free installation.

Phase 1: High-Voltage Power Lockout

Never rely on simply switching the thermostat mode to "Off." Turn off electrical power at two points:

1. Locate the red-covered furnace service toggle switch (often mounted on the side of the furnace or at the top of the basement stairs) and flip it to OFF.
2. Navigate to your home’s main circuit breaker panel and switch off the dedicated breakers labeled "Furnace", "Air Handler", and "A/C Condenser".
3. Verify power is 100% off using a non-contact voltage tester directly against the thermostat wall plate before touching any bare copper.

Phase 2: Photography & Physical Terminal Tagging

Pry the old thermostat faceplate off its sub-base. Before loosening a single terminal screw, take three sharp, well-lit smartphone photos from multiple angles, ensuring the terminal letters (R, C, W, Y, G, etc.) and wire entry points are clearly visible. Apply the adhesive wire labels included in your smart thermostat box directly to each wire according to the letter of the terminal it was inserted into.

Phase 3: Inspect the Furnace Control Board

Before mounting the new thermostat, remove the lower access panel on your furnace or air handler. Inspect the low-voltage terminal barrier strip on the integrated control board. Verify that the wire colors connected to R, C, W, Y, and G at the furnace match the tagged wires at your thermostat wall plate. If you discover a loose, disconnected wire at the furnace terminal labeled "C", this is your opportunity to connect your spare wire and gain native C-wire power.

Phase 4: Sub-Base Mounting & Clean Wire Insertion

Mount the new smart thermostat backplate using a miniature torpedo level to ensure a plumb, professional appearance. Ensure each wire conductor has approximately 3/8 inch (10mm) of clean, uncorroded copper exposed. Insert each tagged conductor firmly into its matching push-button terminal until the release tab clicks into the locked position. Tug each wire gently to confirm mechanical grip.

Phase 5: Power Restoration & Guided Commissioning

Reinstall the furnace access panel securely (modern furnaces feature a safety door interlock switch that cuts all 24V power if the door is ajar). Restore power at the breaker panel and service switch. Follow the smart thermostat's onscreen wizard:

• Step 1 (Fan Test): Set Fan to "ON". Verify the indoor blower engages within 10 seconds.
• Step 2 (Cooling Test): Set Mode to "Cool" and lower setpoint 3°F below room temperature. Confirm the outdoor compressor contactor clicks in and cool air emerges from vents.
• Step 3 (Heating Test): Set Mode to "Heat" and raise setpoint 3°F above room temperature. Confirm the furnace burner lights or the heat pump initiates warm airflow without tripping safety limits.

6. How ThermostatWires.com Eliminates Installation Errors and Blown Fuses

Generic paper manuals bundled inside thermostat boxes cannot account for the vast combinatorial complexity of North American HVAC systems. With more than fifteen distinct terminal letters, dual-stage configurations, heat pumps with dual-fuel gas backups, and legacy wire savers, there are literally thousands of potential wiring permutations.

That is why we built ThermostatWires.com—a free, independent, engineering-grade web platform created specifically to eliminate the guesswork from thermostat installations.

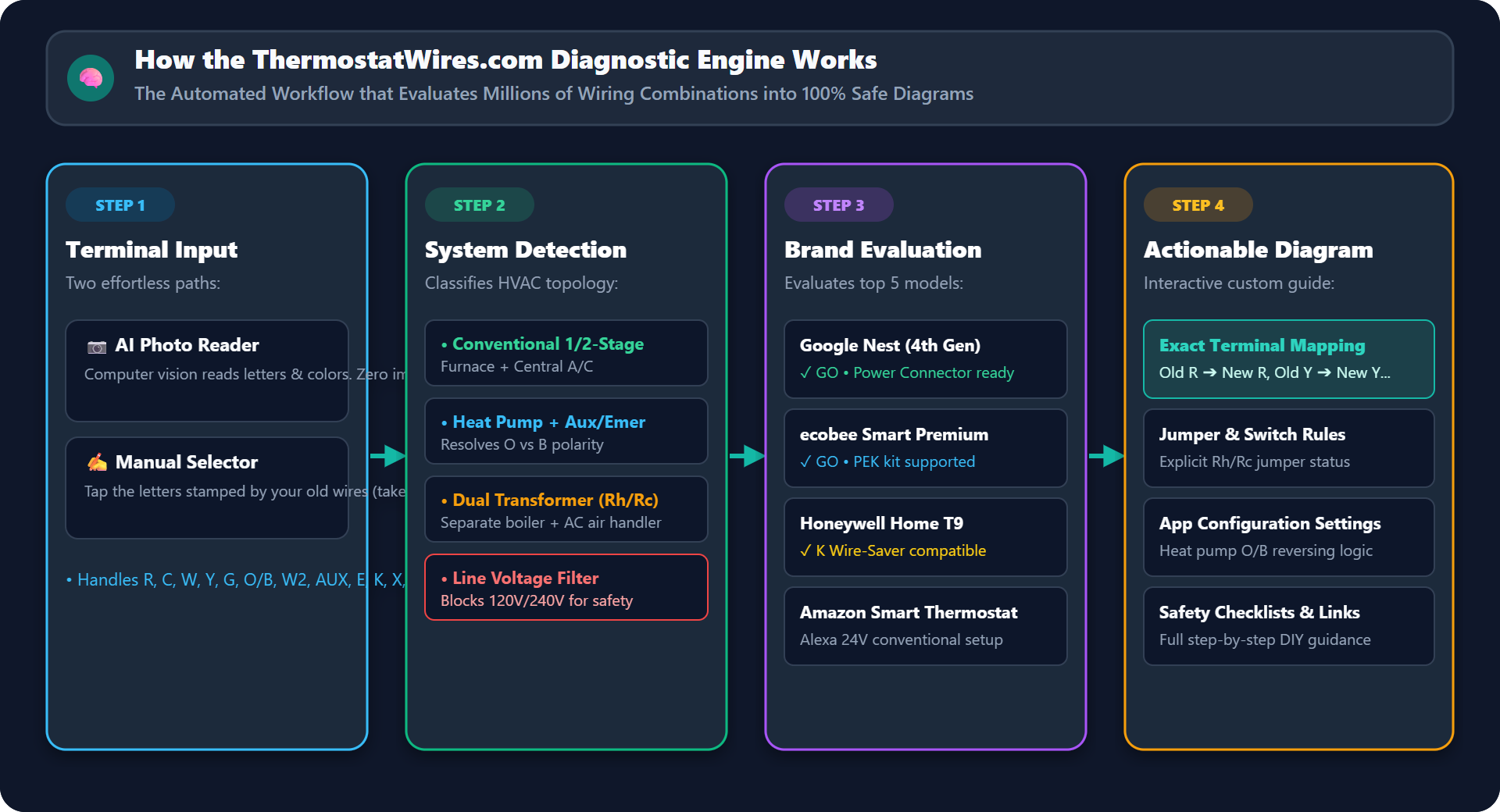

The 4-Step ThermostatWires Diagnostic Engine

ThermostatWires.com replaces trial-and-error with deterministic electrical logic:

1. Instant Terminal Input (AI Photo OCR or Manual Chips): Homeowners can snap a quick smartphone photo of their exposed wall plate. Our privacy-first computer vision model parses the terminal letters and wire colors directly in-memory (with zero image retention). Alternatively, you can tap our responsive terminal chips in under 20 seconds.
2. System Classification & Safety Filter: The engine analyzes your terminal combination to identify your exact system architecture: single-stage conventional, two-stage heat/cool, heat pump with auxiliary heat, or dual-transformer Rh/Rc. Critically, it immediately intercepts dangerous high-voltage line-voltage (120V/240V) or millivolt configurations to prevent fire hazards.
3. Multi-Brand Cross-Evaluation: In real time, the platform evaluates your wiring against the official manufacturer engineering documentation for five leading smart thermostats:
   • Google Nest Learning Thermostat (4th gen)
   • ecobee Smart Thermostat Premium
   • ecobee Smart Thermostat Enhanced
   • Honeywell Home T9 Smart Thermostat
   • Amazon Smart Thermostat
   Each model is assigned an unambiguous compatibility verdict: Direct Swap (Go), Adapter Required, Verify Wire First, Pro Install Recommended, or Incompatible.
4. Actionable Wiring Diagrams & App Configuration: Rather than forcing you to decipher generic schematics, the tool renders an interactive, vector wiring diagram showing exactly which old wire connects to which new terminal, specifies whether jumpers must be removed, and provides the exact software configuration settings (such as O/B reversing valve orientation).
