The Master Heat Pump & Dual-Fuel Thermostat Wiring Guide: Reversing Valves, Auxiliary Staging, Defrost Circuits, and Balance Points

1. Heat Pump Thermodynamics: Heating Cycle vs. Cooling Cycle Electrical Logic

A conventional central air conditioner and an air-source heat pump look virtually indistinguishable from the outside. Both feature an outdoor condensing unit housing a hermetic scroll compressor, a finned coil, an aluminum fan blade, and a low-voltage electrical control box. Yet, from an electrical control and thermodynamic perspective, they operate on completely different governing principles.

A conventional air conditioner is strictly a one-way heat mover. It absorbs heat from indoor air across an indoor evaporator coil and dumps that heat into outdoor air. In the winter, the AC sits completely dormant while a separate furnace (burning natural gas, propane, or fuel oil) or an electric resistance air handler supplies all heating energy.

A heat pump, by contrast, is a bi-directional thermodynamic machine based on the reverse Carnot vapor-compression cycle. Because absolute zero is -459.67°F (-273.15°C), ambient outdoor air at 35°F, 20°F, or even 0°F contains a tremendous quantity of thermal energy. By manipulating the boiling point and condensation pressure of modern refrigerants (such as R-410A or R-454B), a heat pump absorbs heat from sub-freezing outdoor ambient air, compresses that vapor to 120°F+ temperatures, and releases that captured heat into the home's living spaces.

The Efficiency Advantage: Coefficient of Performance (COP)

The engineering metric that defines heat pump superiority is the Coefficient of Performance (COP):

Consider the thermodynamic contrast between standard heating technologies:

• Electric Resistance Strip Heaters (Nichrome wire): Theoretical COP = 1.0 (100% efficient). Every 1,000 Watts of electricity consumed produces exactly 3,412 BTUs of heat.
• High-Efficiency Condensing Gas Furnace: AFUE rating = 95% to 98% (COP equivalent = 0.95 to 0.98).
• Modern Inverter Heat Pump (above 40°F): COP = 3.2 to 4.2 (320% to 420% efficiency!). For every 1,000 Watts of electrical power consumed by the compressor motor, the system extracts and pumps 3,200 to 4,200 Watts (up to 14,300 BTUs) of free ambient thermal energy into the home!

Because the heat pump moves heat rather than creating heat through combustion or electrical resistance, it delivers heating at a fraction of the operating cost of electric baseboards or propane. However, this thermodynamic elegance requires complex low-voltage electrical coordination at the thermostat sub-base.

2. The 4-Way Reversing Valve (O/B Terminal): Complete Manufacturer Polarity Matrix

The single mechanical component that differentiates a heat pump from a standard air conditioner is the 4-way reversing valve mounted inside the outdoor condenser cabinet. This brass valve body contains four copper tube connections and an internal sliding Teflon spool. By shifting the spool, the discharge line from the compressor is redirected: in summer, hot discharge gas flows to the outdoor coil; in winter, hot discharge gas flows to the indoor coil.

The sliding spool is piloted by an electrical solenoid controlled directly by the O/B terminal on your thermostat. However, North American HVAC manufacturers never agreed on a uniform electrical standard for how this solenoid is energized. This created the infamous "O vs. B Polarity Dilemma".

The Industry Polarity Split: Energized in Cooling (O) vs. Energized in Heating (B)

Depending on who built your outdoor heat pump unit, the reversing valve solenoid operates under one of two mutually opposite logic states:

Symptom Analysis: How to Spot Inverted Reversing Valve Polarity

If your heat pump was wired correctly but you selected the wrong reversing valve setting in software, the symptoms are immediate and unmistakable:

• In Cooling Mode: The indoor vents blow scorching, high-humidity 105°F heated air while the outdoor unit discharges ice-cold air.
• In Heating Mode: The indoor vents blast chilly 50°F refrigerated air while the outdoor unit discharges hot air into the backyard.

You do not need to disassemble any wall wiring to fix this! Simply open the thermostat configuration app, enter the installer/equipment settings, navigate to Reversing Valve / O/B Orientation, and flip the toggle from O to B (or B to O). Wait three minutes for the compressor short-cycle delay timer to expire, and your system will operate properly.

3. Auxiliary Heat (AUX / W2) vs. Emergency Heat (E): Staging Mechanics & Wiring

Few thermostat concepts cause more consumer panic and skyrocketing winter electric bills than the misunderstanding between Auxiliary Heat (AUX) and Emergency Heat (E). While both circuits typically energize the same bank of indoor electric resistance heating coils, their electrical control triggers, energy consumption profiles, and software behaviors are radically different.

Why Do Heat Pumps Need Supplemental Heat?

As outdoor temperatures drop, the density of outdoor air decreases, and the temperature difference between the refrigerant boiling point and the ambient air shrinks. Consequently, the heating output capacity of any air-source heat pump naturally degrades as the mercury falls:

• A typical 3-ton (36,000 BTU/h) heat pump that outputs 38,000 BTU/h at 47°F outdoor ambient may only produce 22,000 BTU/h at 25°F, and 14,000 BTU/h at 10°F.
• Concurrently, as outdoor temperatures drop, the home's rate of heat loss through walls, windows, and ceilings increases linearly.

When outdoor temperatures drop below the point where the compressor's output matches the home's heat loss (the Thermal Balance Point), the heat pump alone cannot maintain the indoor setpoint. Supplemental heating must be staged to fill the thermodynamic deficit.

Auxiliary Heat (AUX / W2): The Cooperative Partner

Auxiliary Heat (AUX) is an automated, staged heating mode. In this state, the outdoor heat pump compressor CONTINUES TO RUN, harvesting whatever low-cost heat is available from outdoor air. Simultaneously, the smart thermostat closes the internal W2 / AUX relay to energize electric resistance heat strips (or fires a secondary gas burner) in the indoor air handler to provide the extra 10,000 to 30,000 BTUs needed to satisfy the thermostat setpoint.

Smart thermostats engage Auxiliary Heat automatically under three distinct conditions:

1. Large Temperature Setpoint Deficit: When the user raises the thermostat setpoint by 3°F or more above current room temperature (e.g., coming out of an overnight setback schedule).
2. Prolonged Heating Recovery: When the heat pump compressor has run continuously for 45 to 60 minutes without satisfying the thermostat setpoint.
3. Outdoor Ambient Lockout: When the outdoor temperature falls below the user-programmed "Compressor Low Temperature" threshold.

Emergency Heat (E): The Manual Compressor Override

Emergency Heat (E) is strictly a manual user override designed for mechanical hardware failure. When Emergency Heat is toggled ON in the thermostat menu:

• The thermostat completely de-energizes the Y1 and Y2 compressor calls, shutting down the outdoor heat pump completely.
• The thermostat energizes the E terminal, forcing 100% of the home's heating load onto the high-draw electric resistance coils (or backup furnace).

Wiring Terminals: Should AUX and E Be Jumpered?

On older mechanical thermostats, installers frequently placed a physical copper jumper wire between the W2 (Aux) and E (Emergency) screw terminals. On modern smart thermostats:

• ecobee Smart Thermostat Premium / Enhanced: Do NOT install a physical jumper! Insert your auxiliary heat wire into W1. During initial setup, tell ecobee you have a heat pump with 1 stage of auxiliary heat; ecobee's software handles both automated Aux staging and manual Emergency Heat lockout internally through that single terminal.
• Google Nest Learning Thermostat: Insert the auxiliary wire into the W2/AUX connector. If you have a separate emergency heat wire from an outdoor defrost board, connect it to * (Star) or follow Nest’s onscreen terminal mapper.
• Honeywell Home T9: Features dedicated AUX and E terminals. If your cable bundle only has one white wire for both, consult our heat pump with emergency heat guide.

4. The Defrost Cycle: The Outdoor Board's Secret 24VAC Back-Feed

During winter operation, the outdoor coil of an air-source heat pump operates at temperatures between 10°F and 15°F colder than the surrounding outdoor air. When outdoor temperatures hover between 32°F and 42°F (0°C to 5.5°C) in high-humidity or foggy conditions, atmospheric moisture condenses on the cold aluminum fins and freezes into a solid blanket of frost.

If left unaddressed, this frost layer chokes airflow across the outdoor coil, collapsing the system’s ability to absorb heat and risking compressor liquid slugging. To resolve this, every modern heat pump incorporates an automated Defrost Control Board.

The Defrost Cycle Sequence of Events

Every 30, 60, or 90 minutes of compressor run time (or via smart demand sensors monitoring coil temperature vs. ambient temperature), the defrost board initiates a de-icing cycle:

1. Outdoor Fan Shutdown: The defrost board opens a relay that cuts power to the outdoor condenser fan motor. This traps heat inside the outdoor cabinet.
2. Reversing Valve Reversal: The defrost board energizes (or de-energizes) the 4-way reversing valve solenoid, instantly shifting the heat pump from Heating Mode into Cooling Mode! High-pressure, 160°F superheated refrigerant gas is routed directly through the frosted outdoor coil, melting the ice into steam within 3 to 8 minutes.
3. The Indoor Cold-Air Dilemma: Because the heat pump is temporarily running in cooling mode, the indoor evaporator coil would normally extract heat from your living room, blasting arctic 45°F air through your supply vents while you are sitting on the couch!
4. The Secret 24VAC Back-Feed: To prevent this "cold-blow" sensation, the outdoor defrost board features an onboard relay wired into the W2 / AUX terminal. The moment defrost begins, the defrost board sends a 24VAC signal backward up the W2 wire to the indoor air handler, forcibly firing the electric resistance heat strips to temper the indoor air!

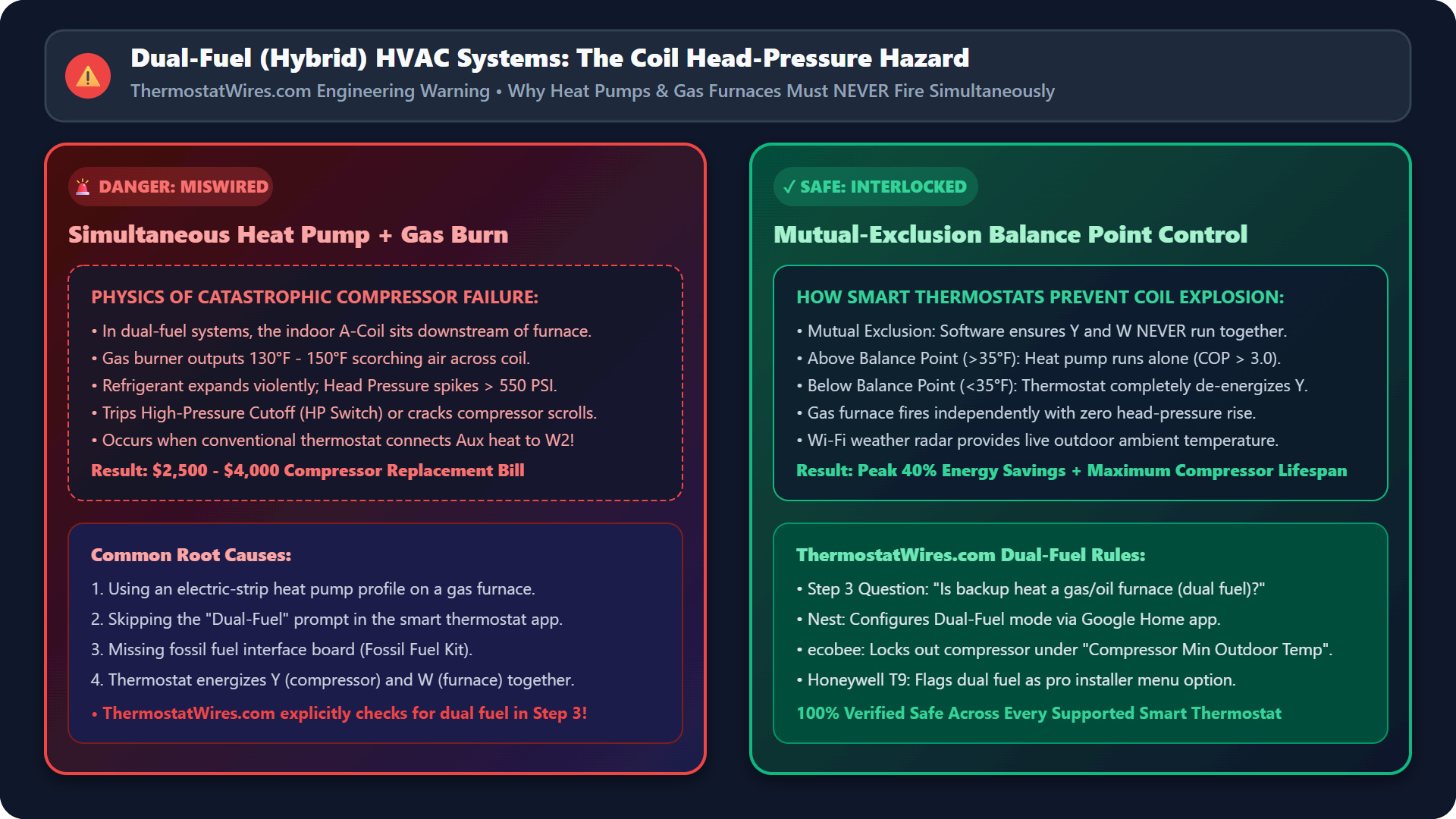

5. Dual-Fuel (Hybrid) Systems: The High-Pressure Coil Explosion Hazard

In regions with harsh sub-zero winter temperatures (such as the American Midwest, Northeast, and Canada), standard air-source heat pumps lose efficiency during deep freezes. To achieve the ideal balance of decarbonization and winter comfort, millions of homeowners install Dual-Fuel (Hybrid) HVAC Systems.

A dual-fuel system pairs an electric air-source heat pump outdoors with a high-efficiency natural gas, propane, or fuel oil furnace indoors. However, because of the physical geometry inside the furnace closet, dual-fuel systems present the most catastrophic wiring hazard in residential HVAC.

The Physical Geometry: Why Coils Explode

In a standard electric air handler (heat pump only), the electric heat strips are positioned downstream of the indoor refrigerant coil, or the coil is designed to tolerate low electric strip temperatures. But in a gas furnace dual-fuel installation:

• The natural gas burner heat exchanger is located at the bottom of the furnace cabinet.
• The indoor heat pump refrigerant coil (the "cased A-coil") is mounted directly on top of the furnace, directly in the blast path of the combustion discharge air.

When the gas furnace fires, the air passing across the heat exchanger reaches blistering temperatures between 130°F and 150°F (55°C to 65°C).

If an inexperienced DIYer wires a dual-fuel system using a standard conventional thermostat profile, the thermostat will treat the gas furnace as ordinary "Auxiliary Heat." When room temperatures drop, the thermostat leaves the outdoor heat pump compressor running (Y energized) while simultaneously lighting the gas burners (W energized)!

The consequences of simultaneous operation are devastating:

1. The 140°F furnace exhaust air superheats the high-pressure liquid refrigerant inside the indoor A-coil.
2. Refrigerant cannot condense from vapor to liquid; internal pressure skyrockets past 550 to 600 PSI.
3. The outdoor compressor scroll plates overheat, the motor draws locked-rotor amperage (LRA), and the internal thermal overload trips.
4. Repeated simultaneous firing causes high-pressure relief valve blowouts, ruptured coil headers, or complete mechanical compressor seizure—resulting in a $2,500 to $4,500 replacement bill.

The Solution: Mutual Exclusion via Smart Thermostat Interlocks

To safely operate a dual-fuel system, the control circuit must enforce 100% mutual exclusion: the outdoor heat pump compressor and the indoor gas furnace must NEVER run at the same time.

Historically, this required mounting an expensive mechanical relay box called a Fossil Fuel Kit inside the furnace cabinet. Today, advanced smart thermostats handle dual-fuel mutual exclusion entirely in software:

• Step 3 in ThermostatWires.com: Our diagnostic tool explicitly asks: "Is the backup heat a gas or oil furnace (dual fuel)?" Ticking "Yes" configures your custom wiring schematic to isolate the heating stages and warns you against jumpering W to Y.
• Google Nest Configuration: In the Google Home app, designate your heat source as "Dual Fuel". Nest will use internet weather forecasts to lock out the heat pump and hand 100% of heating duties over to the furnace below your selected balance point.
• ecobee Configuration: In the ecobee Installation Settings, set Heating Type to "Furnace" and configure the Compressor Min Outdoor Temperature.

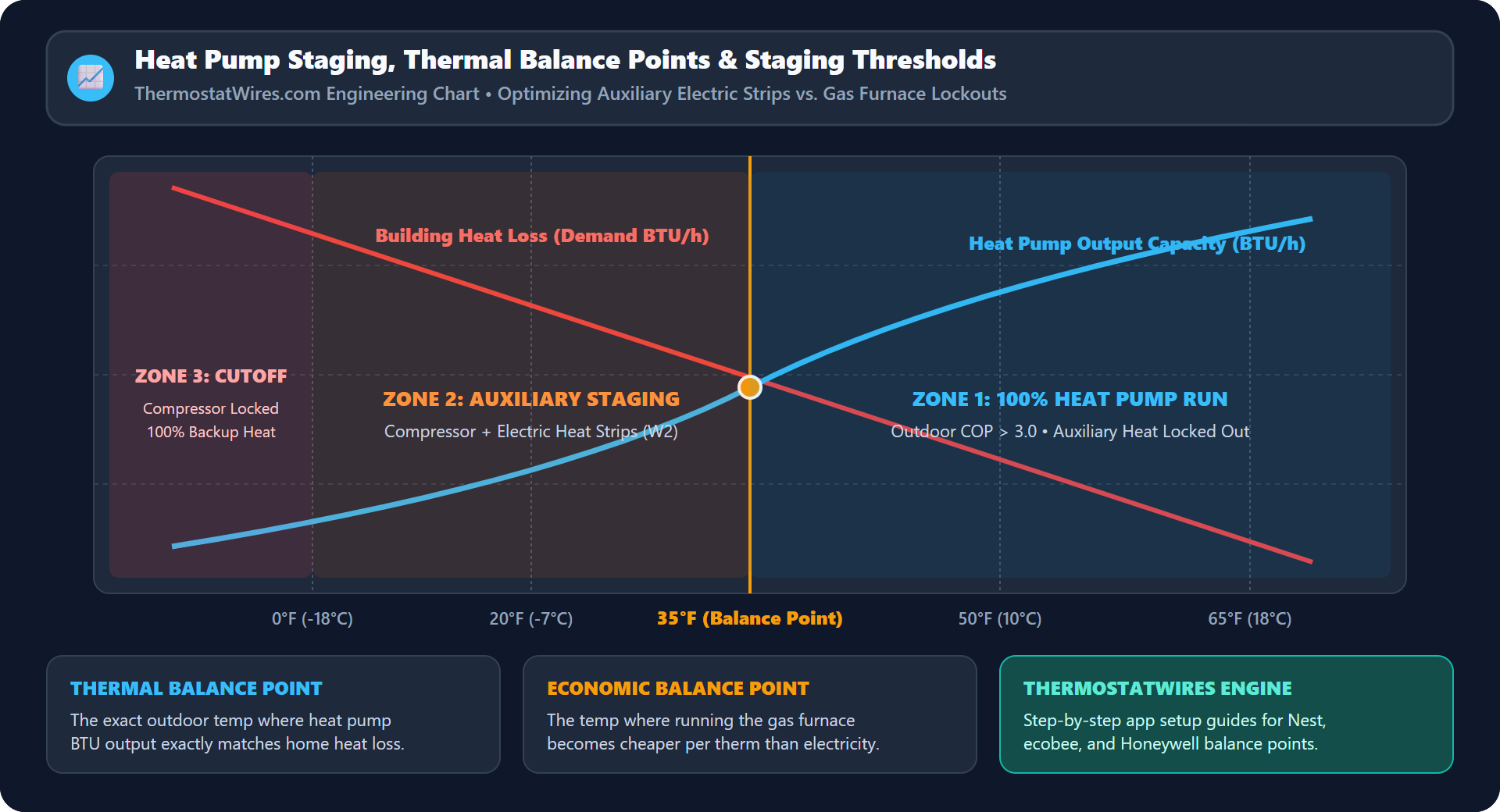

6. Thermal Balance Points vs. Economic Balance Points: Math & Programming

Installing a smart thermostat on a heat pump or dual-fuel system is only half the battle; the true financial return comes from properly configuring the Balance Point Thresholds in the thermostat software. Setting the balance point too high wastes money by firing expensive backup fuel prematurely; setting it too low leaves the home chilly and runs the compressor inefficiently.

Thermal Balance Point vs. Economic Balance Point: The Key Difference

Homeowners frequently conflate these two critical engineering metrics:

• The Thermal Balance Point: The outdoor ambient temperature at which the heat pump's physical heating output exactly equals the building's heat loss. For example, if a home loses 24,000 BTU/h at 32°F and the heat pump produces exactly 24,000 BTU/h at 32°F, the thermal balance point is 32°F. Below this temperature, the heat pump physically cannot keep up without help.
• The Economic Balance Point: The outdoor ambient temperature at which the cost per 100,000 BTUs of heat generated by the electric heat pump equals the cost of 100,000 BTUs generated by the gas furnace. This is an economic calculation that shifts based on your local utility tariff rates.

The Economic Balance Point Calculation Formula

To determine the exact outdoor temperature where you should switch from your heat pump to your gas furnace, calculate the cost per 100,000 BTUs of delivered heat:

Real-World Example:

• Electricity Rate: $0.16 per kWh
• Natural Gas Rate: $1.20 per therm
• Furnace AFUE: 96% (0.96) • Gas Cost per 100k BTU = [1 / 0.96] × $1.20 = $1.25
• Heat Pump at 40°F (COP = 3.4): Cost = [100,000 / (3,412 × 3.4)] × $0.16 = $1.38
• Heat Pump at 25°F (COP = 2.2): Cost = [100,000 / (3,412 × 2.2)] × $0.16 = $2.13

In this utility market, the gas furnace becomes cheaper to operate than the heat pump whenever the heat pump COP drops below 3.7 (approximately 38°F). Setting your dual-fuel smart thermostat lockout to 35°F to 38°F ensures you always burn the cheapest thermal fuel automatically!

7. Smart Thermostat Heat Pump Comparison: Nest, ecobee & Honeywell T9

Not all smart thermostats handle heat pumps with equal sophistication. When choosing a thermostat for a complex heat pump or dual-fuel system, hardware terminal availability and firmware staging flexibility are paramount.

As an Amazon Associate we earn from qualifying purchases.

8. Field Troubleshooting & 24VAC Multimeter Testing on Heat Pumps

When commissioning a new heat pump smart thermostat, follow this diagnostic multimeter test sequence to verify signal integrity before calling an expensive emergency technician.

Multimeter Diagnostic Voltage Checklist for Heat Pumps

Set your digital multimeter to AC Volts (VAC). Connect the black probe to the C (Common) terminal and measure voltage across each control pin:

• Testing C to R (Continuous Power): Must read 24VAC to 28VAC at all times. If 0V, verify the 3A control board fuse and air handler door switch.
• Testing C to Y1 (Compressor Call): Reads 0VAC during idle. When the thermostat calls for heat or cool, voltage jumps to 24VAC, pulling in the outdoor contactor.
• Testing C to O/B (Reversing Valve):
  • On "O" systems (Carrier/Trane): Reads 24VAC in Cooling mode; reads 0VAC in Heating mode.
  • On "B" systems (Rheem/Ruud): Reads 24VAC in Heating mode; reads 0VAC in Cooling mode.
• Testing C to W2/AUX (Auxiliary Heat): Reads 0VAC during normal heat pump running. When room temperature is set 4°F above ambient, voltage jumps to 24VAC, triggering the indoor electric heat sequencer.

Top 3 Heat Pump Troubleshooting Fixes

1. The Compressor Runs but Blower Fan Never Turns On

Verify that your smart thermostat is configured for "Thermostat Controls Fan in Heat" (Electric Heat setting) rather than "Furnace Controls Fan". Conventional gas furnaces manage their own blower after a 30-second heat exchanger warm-up. Heat pumps require the thermostat to energize the G terminal simultaneously with Y and W2.

2. System Blows Cold Air for 5 Minutes Every Hour in Winter

Your outdoor unit is entering defrost, but the W2 / AUX signal line is disconnected or miswired at the air handler. Because the auxiliary heat strips fail to engage during defrost, the system blows un-tempered 45°F air into the home. Re-check the connection between the outdoor defrost board "W2" terminal and the indoor air handler auxiliary heat terminal.

3. Outdoor Compressor Does Not Turn On (Thermostat Says "Waiting")

Virtually all smart thermostats feature a built-in 5-minute compressor short-cycle protection delay. If power was momentarily interrupted or modes were toggled rapidly, the thermostat displays a flashing snowflake or "Waiting 5 Minutes" message to allow refrigerant pressures to equalize before restarting the compressor. Do not reset breakers; wait 5 minutes and the compressor will start automatically.
